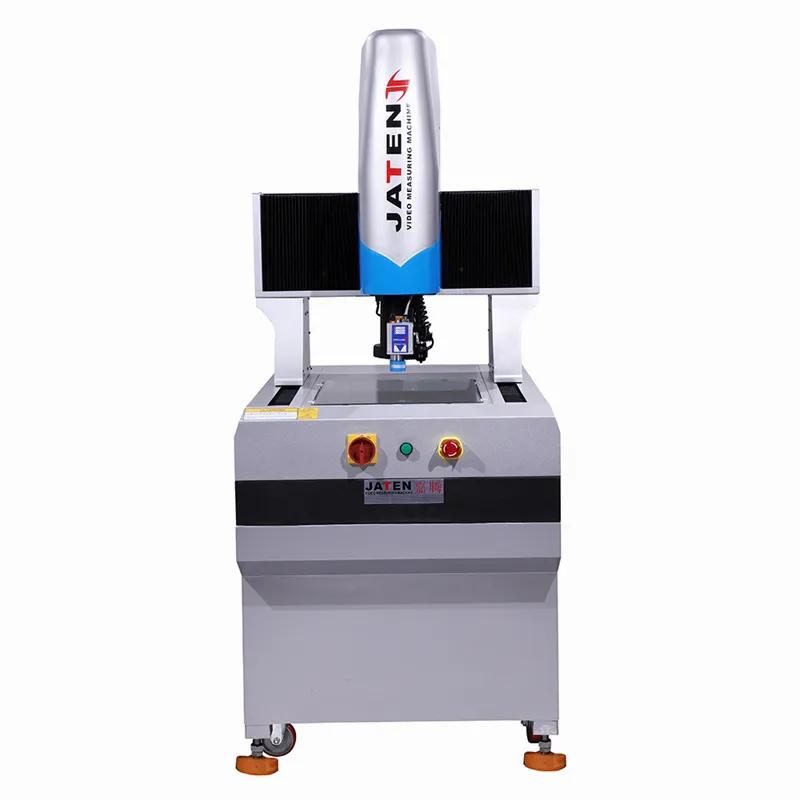

In today's high-precision industries such as electronics, semiconductors, mold manufacturing, and medical devices, traditional manual inspection methods can no longer meet the demand for high throughput and accuracy. The QVS High-End CNC Vision Measuring Machine is specifically designed for such environments, offering a stable structure, high-performance components, and intelligent automation to enhance inspection reliability and efficiency.

1. Stable Structure Ensures Measurement Accuracy
The QVS system features a high-precision granite base and bridge, ensuring excellent rigidity and thermal stability. Compared with aluminum or welded frames, granite provides superior long-term stability and vibration resistance, which is essential for micron-level precision.

Its “mini-gantry” moving structure keeps the glass stage stationary while only the bridge and measuring head move. This design reduces dynamic errors during motion and supports faster measurements without compromising accuracy—ideal for large PCB or mold component inspections.

2. High-Precision Transmission and Motion Control
Equipped with precision-ground ball screws and linear guide rails, combined with Panasonic servo motors, the QVS system supports dual closed-loop motion control, enabling high-speed positioning with consistent accuracy. The feedback system actively compensates for motion errors, making the system reliable even in fast, repetitive cycles.

3. Advanced Optical Imaging System
At the core is a 2.3MP high-resolution color industrial camera developed by JATEN, offering vivid, distortion-free images. Paired with a custom-designed cold LED illumination module consisting of 48 independently controlled light zones, users can fine-tune lighting for different materials to enhance edge contrast and reduce reflections.

This lighting setup is especially effective for inspecting reflective surfaces like PCBs, electroplated parts, or transparent plastics.

4. Auto Zoom & Intelligent Navigation System
The QVS features a fully automatic motorized zoom lens (e.g., 0.7x to 4.5x). The system automatically recalibrates after zoom changes—no manual accuracy adjustment is needed.

Its image navigation system allows quick positioning of the measurement area, particularly useful for large workpieces or multi-fixture setups.

5. Powerful Measuring Software: QuickMeasuring
Integrated with JATEN’s QuickMeasuring software, the system supports:

Graphical programming

Automatic inspection sequences

SPC reporting

Barcode/image-triggered program calling

This makes it perfect for batch inspections, first-article validation, and automated production line integration.

6. Embedded Motor Control & Simplified Communication
An embedded controller module simplifies the interface between the PC and the machine. Through USB and S-terminal connections, communication becomes more reliable while reducing wiring complexity. The controller’s fast response time ensures smooth multi-axis coordination.

7. Optional Probes and Laser Sensors for 3D Expansion
The system is scalable with:

RENISHAW touch probes for full 3D coordinate measurements

KEYENCE or Opimet laser displacement sensors for flatness, step height, or co-planarity checks

This flexibility allows users to upgrade from 2D to advanced 3D precision inspection without replacing the entire system.

Conclusion
The QVS High-End CNC Vision Measuring Machine is more than just an inspection tool—it’s a fully automated quality management platform. With its intelligent architecture, precise mechanics, flexible expansion, and smart software, QVS helps manufacturers achieve faster, more reliable, and traceable inspection results.

Whether you're working with high-value molds, medical micro-components, or mass-produced PCB boards, QVS provides the measurement confidence you need to stay competitive in today’s precision-driven world.
