Precision Inspection Tool – Coordinate Measuring Machine (CMM)
What is a Coordinate Measuring Machine (CMM)?

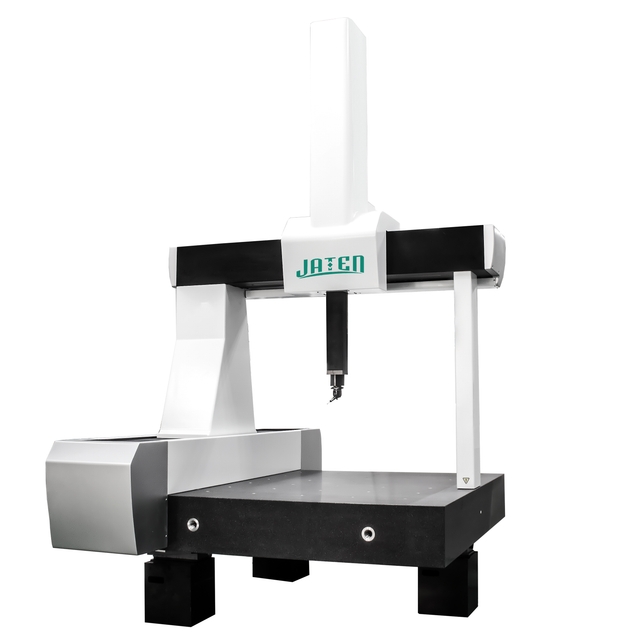

A Coordinate Measuring Machine (CMM) is a high-precision inspection device capable of acquiring geometric dimensions, shapes, and positional information of workpieces in three-dimensional space through its probing system, thereby enabling accurate measurement and quality control of components.
By integrating the X, Y, and Z coordinate axes with touch-trigger probes, scanning probes, or non-contact optical probes, the CMM compares actual part data points with CAD models to determine whether the design requirements are met.
Key Features of a Coordinate Measuring Machine (CMM)
High precision and long-term stability: The three axes are typically constructed from granite or ceramic materials, which have a low thermal expansion coefficient, ensuring consistent measurement accuracy.
Fully enclosed guideway structure: Prevents dust, temperature fluctuations, and other environmental factors from affecting accuracy, making it suitable for complex industrial environments.
Self-compensating transmission system: The friction drive combined with a "fixed + micro-floating" structure maintains smooth and precise motion even at high speeds, with built-in collision protection.
Anti-vibration design: Whether equipped with air bearings or dual damping mechanisms, the CMM effectively mitigates vibrations from factory environments that could compromise measurement accuracy.
Multi-probe compatibility: Supports touch-trigger probes, scanning probes, and non-contact probes, fulfilling diverse inspection requirements.
Wide applicability: From small precision components to large, heavy-duty workpieces, the CMM delivers reliable and stable measurement performance.
Application Areas of a Coordinate Measuring Machine (CMM)
Typical applications of a Coordinate Measuring Machine (CMM) include:

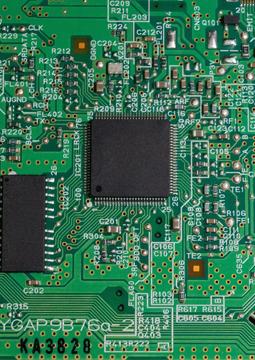

Precision electronics and molds: PCB, molds, electrodes, and small component inspection.
Automotive industry: Engine parts, transmission components, automotive electronics, and structural parts.
Aerospace: Aircraft blades, engines, and structural components.
Energy and heavy industry: Marine engines, propellers, large gears, and turbines.
Medical and pharmaceutical: Precision inspection of medical instruments and pharmaceutical equipment.

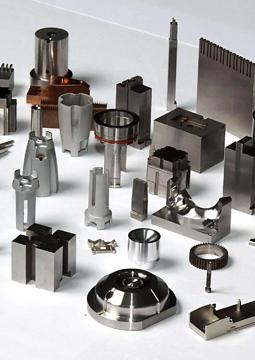

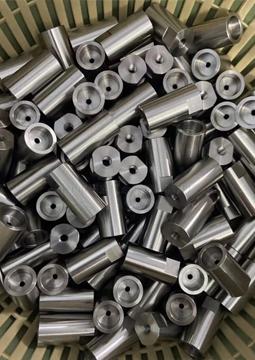

General precision engineering: Stamped parts, castings, forgings, and complex mechanical components.
