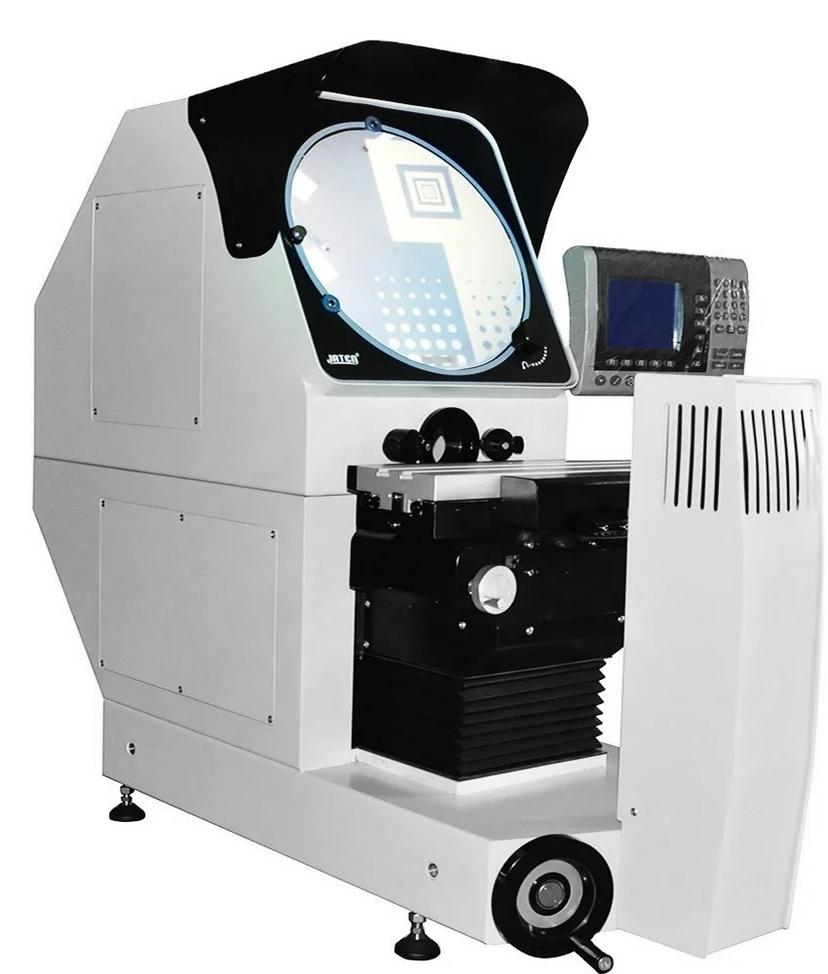

In today’s competitive manufacturing landscape, accuracy in measurement is not just a quality benchmark—it’s a necessity. The HV Series horizontal profile projector by JATEN is a powerful and reliable tool designed for high-precision, non-contact measurement of workpiece profiles and shapes.

Combining optics, mechanics, and electronics in one compact structure, the HV Series is widely used in mold manufacturing, electronics, instrumentation, watchmaking, stamping, and light industrial applications. Whether in the quality control lab or on the shop floor, it plays a vital role in helping manufacturers ensure part conformity and process reliability.

Applications & Industry Fit
The HV Series is ideal for measuring:

Profiles and contours of mechanical parts

Punching and stamping parts

Tools, cutters, cams, gears, and molded components

Terminals, watch parts, diamond tooling, and other micro-precision components

Thanks to its non-contact measurement method, it is particularly well-suited for delicate, small, or soft materials where contact measurement could cause deformation or damage.

Key Features
🔍 1. High-Precision Optical System
Equipped with a quality telecentric objective lens, the HV Series offers a focal length of approximately 92mm, ensuring sharp, clear, and distortion-free images. This makes it easier to visually analyze fine edges, curves, and geometric shapes, even under high magnification.

🎯 2. Accurate Digital Readout System
The X and Y axes feature a high-resolution digital display system with a resolution of 0.0005mm. Measurement error is limited to ≤ (3+L/200) μm, making it suitable for high-tolerance applications in precision engineering and mold making.

📐 3. Horizontal Design for Long or Heavy Parts
The horizontal structure allows convenient placement and stable measurement of long, cylindrical, or heavy workpieces—without concerns about gravitational deformation.

🖥️ 4. Dual-Control Operation
Operators can choose between traditional mouse & keyboard input and an intuitive touchscreen interface, enabling fast setup, alignment, and on-screen measurement.

⚙️ 5. Integrated Auto-Measurement Software
Paired with JATEN’s intelligent measurement software, the system supports:

Auto edge detection

Burr removal logic

Auto part alignment (auto-leveling)

Geometric feature measurement: point, line, circle, angle, distance, center distances, and more

Real-time image zooming, rotation, image inversion, and crosshair alignment tools

These features reduce operator error and dramatically improve measurement speed and repeatability.

Electrical Requirements
Input voltage: 180V–260V AC, 50Hz

Compatible with most standard industrial environments. For optimal performance, a clean, stable room temperature and anti-vibration table are recommended.

Why Choose the HV Series?
Advantage Description
Non-contact measurement No damage or deformation to soft or delicate parts
Clear optical visibility Easy to detect profile deviations and fine details
High accuracy Micron-level precision for complex geometry
Cost-effective Lower cost of ownership compared to fully automated systems
Easy to operate Quick to learn, low maintenance, ideal for shop floor use

Final Thoughts
The HV Series Horizontal Profile Projector combines robust construction, excellent optics, and intuitive software into a single measurement solution. Whether you’re checking the edge profile of a stamping die, verifying dimensions of a precision terminal, or analyzing tool geometry, this projector is a trusted companion for everyday precision work.

For companies aiming to improve quality control without sacrificing efficiency, the HV Series offers an excellent balance of capability and cost.
