JTDHB16/24-Horizontal Profile Projector

JTDHB16/24-Horizontal Profile Projector

Product Details

Category:Profile Projector

Share On

Products Customized to Your Needs – Empowering Your Unique Applications
To meet the diverse requirements of our customers, we offer comprehensive product customization services, including functionality, dimensions, interfaces, and more. Feel free to contact us for detailed customization options.

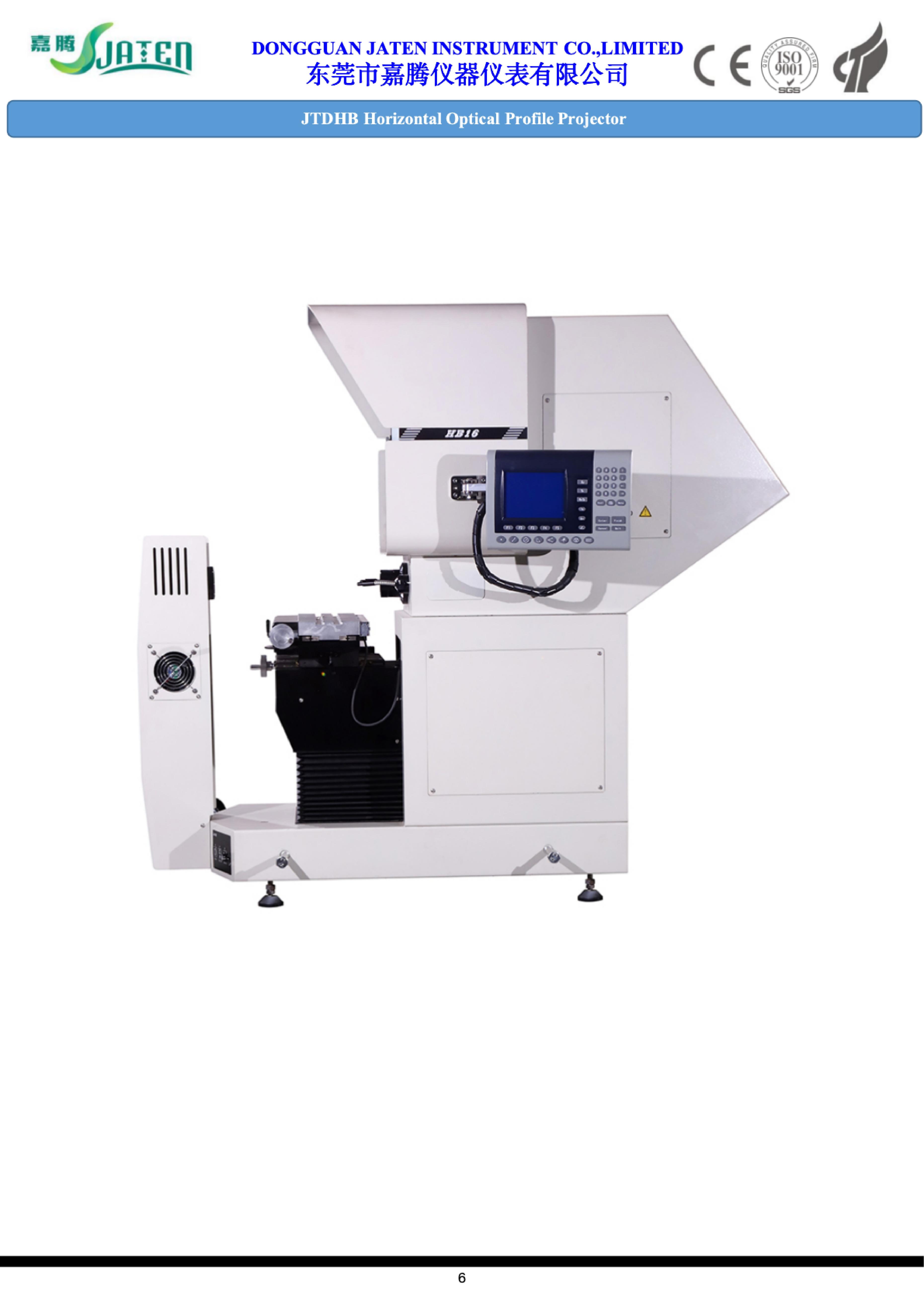

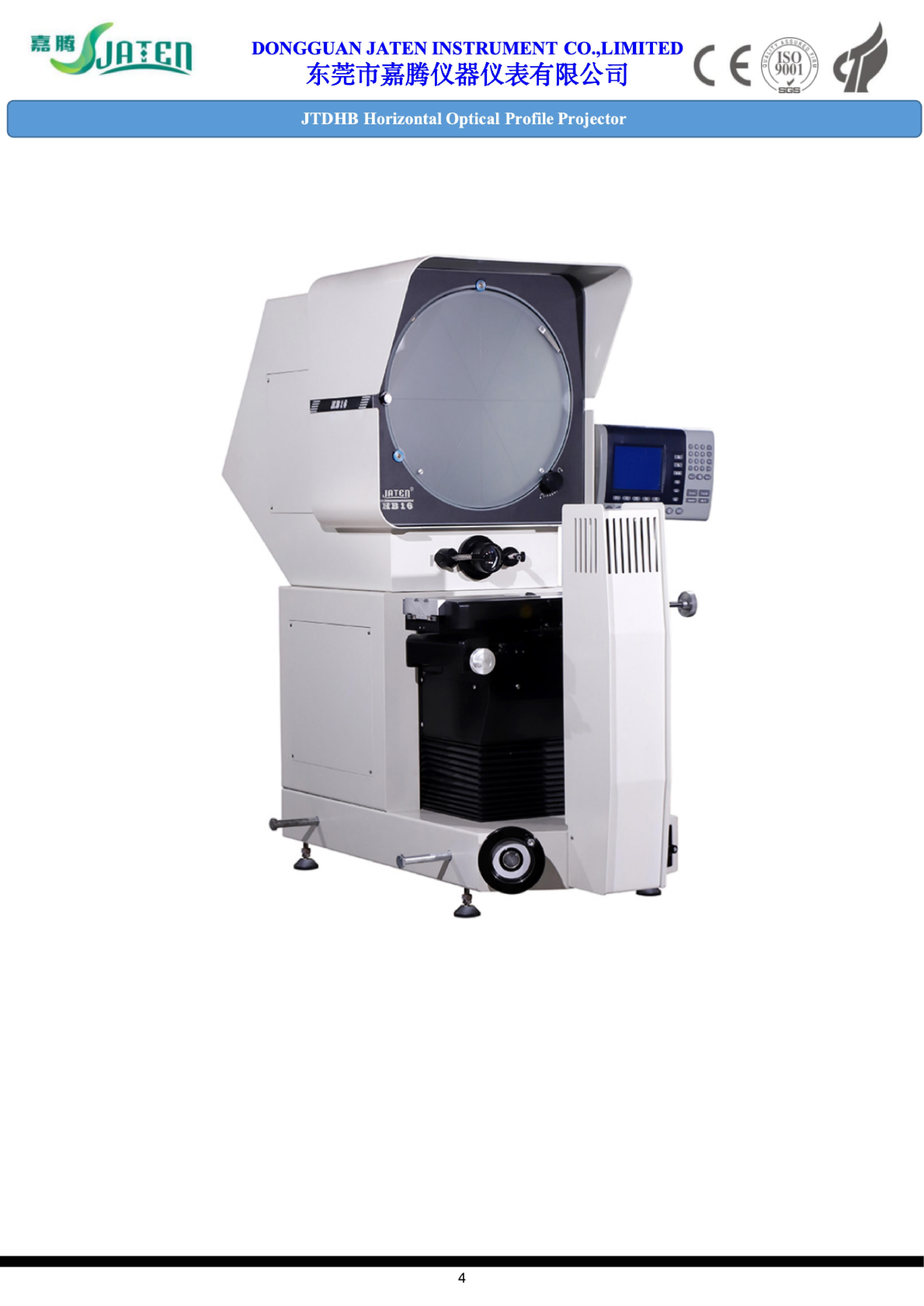

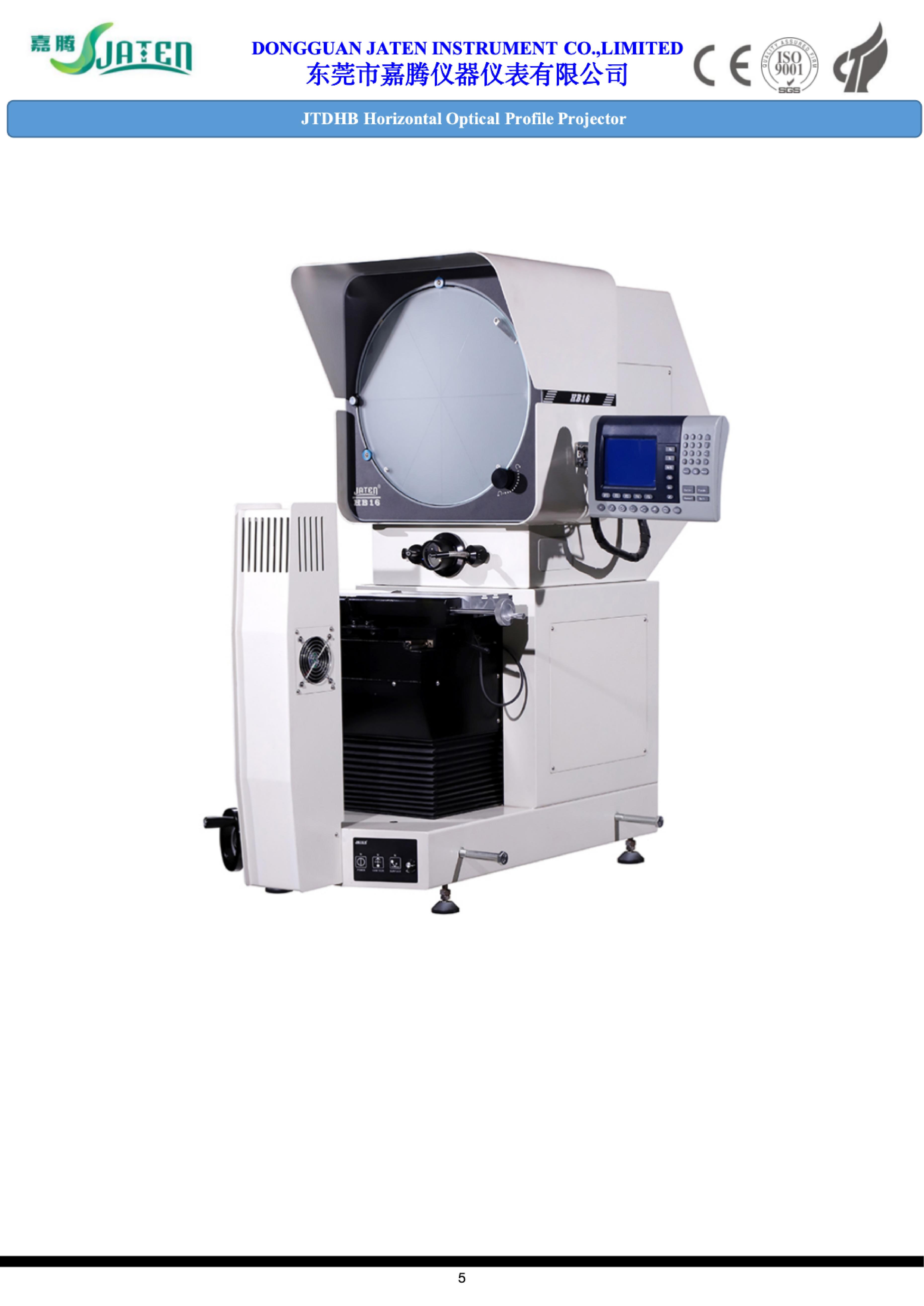

HB16 and HB24 large screen horizontal projector is a precision and efficient measuring instrument integrated with light, machine and electricity. It is widely used in machinery, mold, instrumentation, electronics, light industry and other industries, and is an indispensable measuring and calibration equipment for measuring room and production workshop. This instrument can detect the contour size and surface shape of various complex shaped workpieces, such as sample plate, stamping parts, cams, threads, gears, molding milling cutters and other tools, cutting tools and parts, as well as terminals, clocks and watches, gold and steel and so on. It can effectively supplement measurement and observation of dimensions and parts that are difficult to detect and observe with a vertical projector.

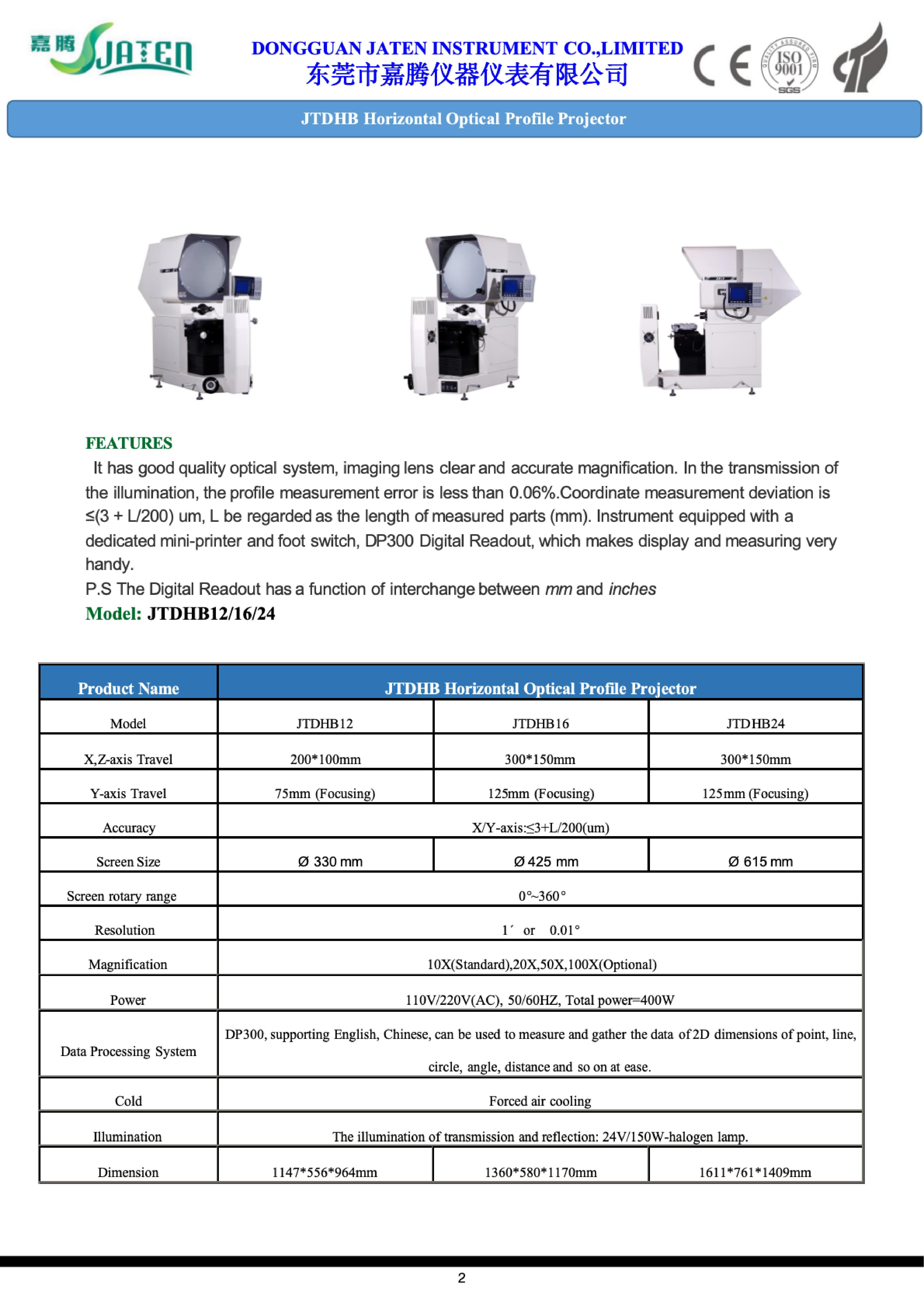

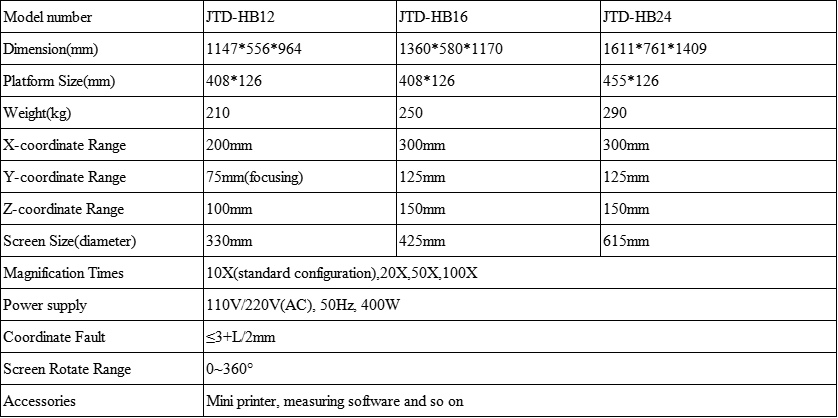

Description:

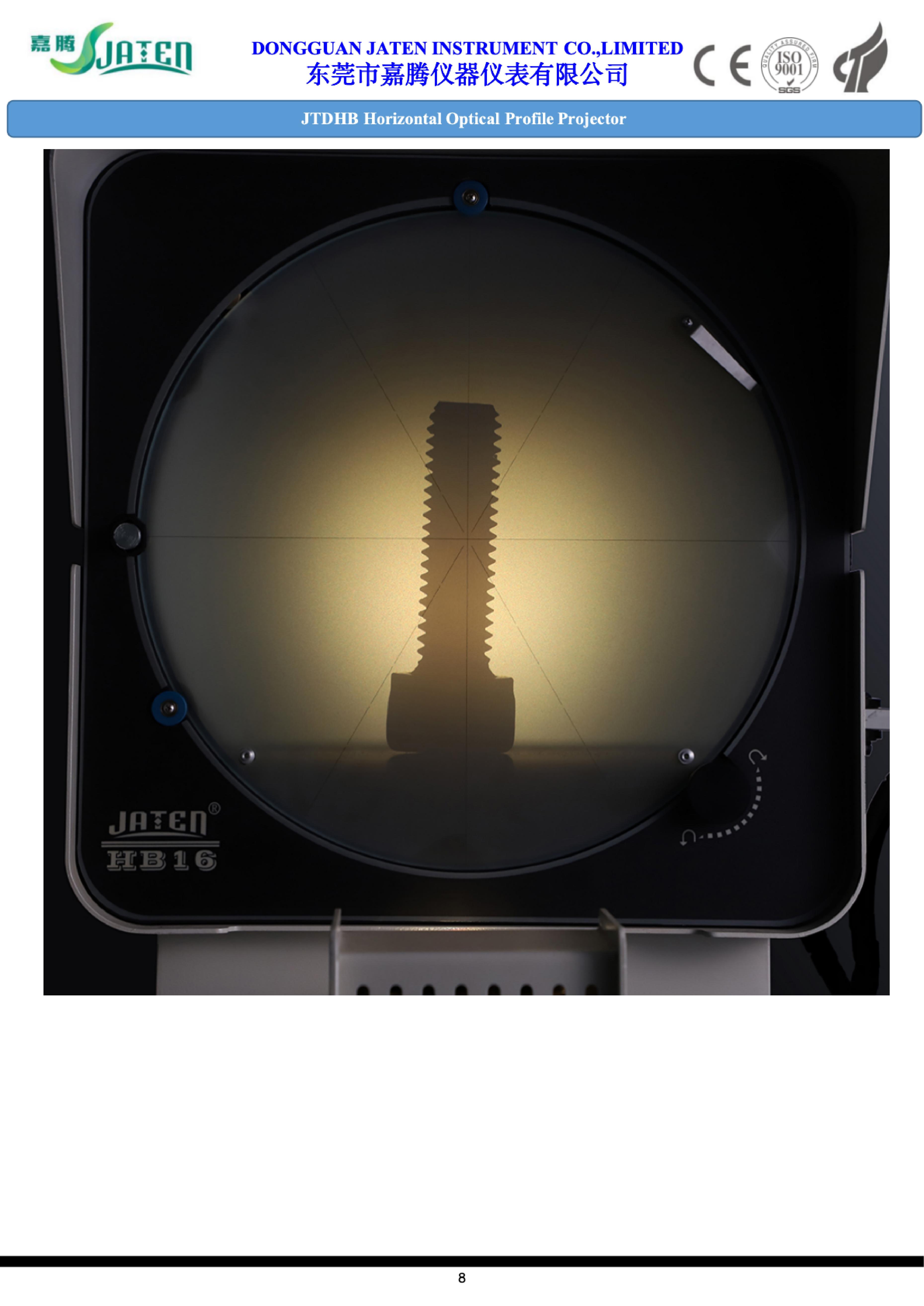

1. 330mm diameter screen with digital protractor;
2. 200x100mm precision movement work-stage, 300x200mm optional;
3. Work-stage sway range between 15°;

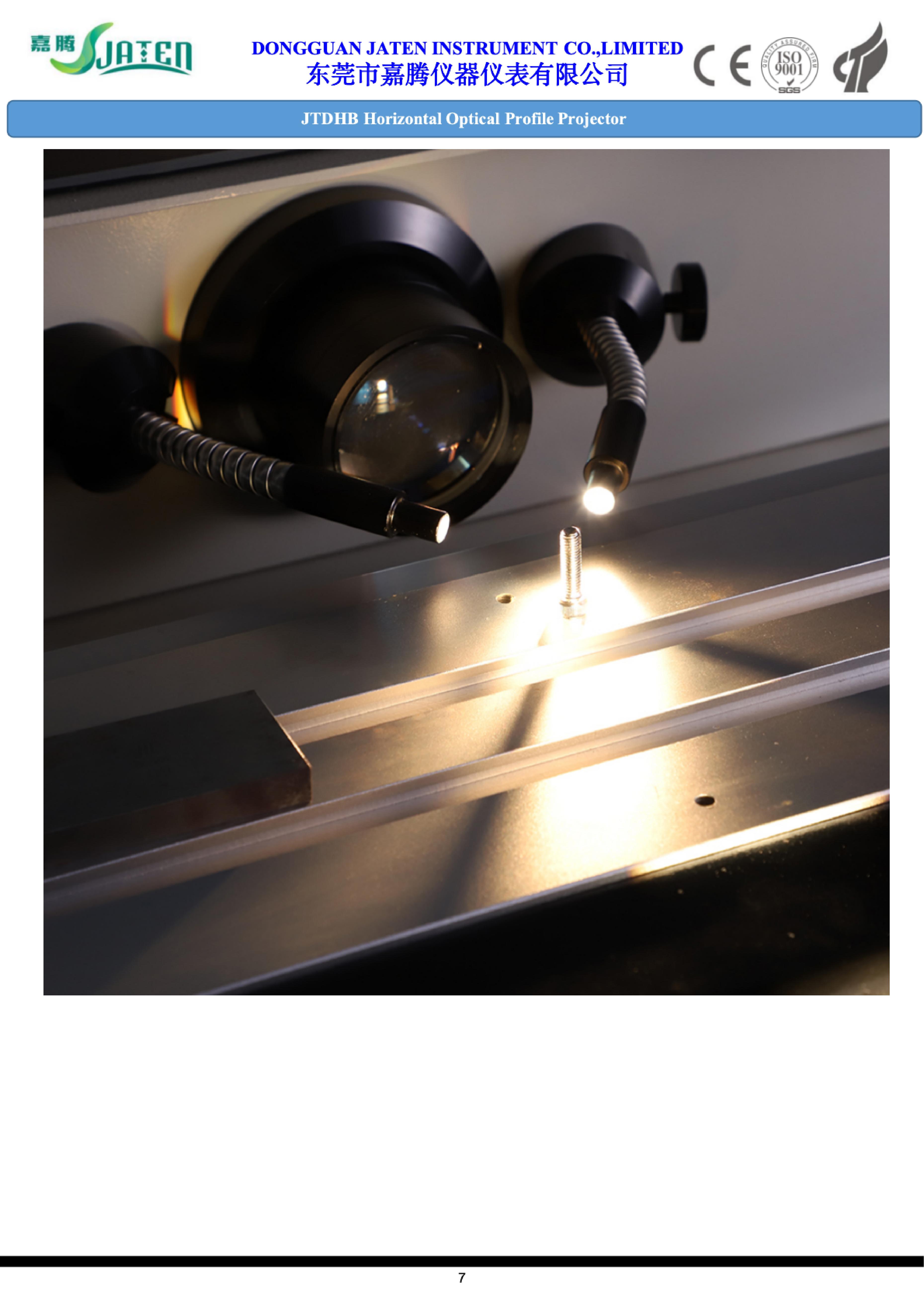

4. Halogen profile and fiber surface illumination adjustable;

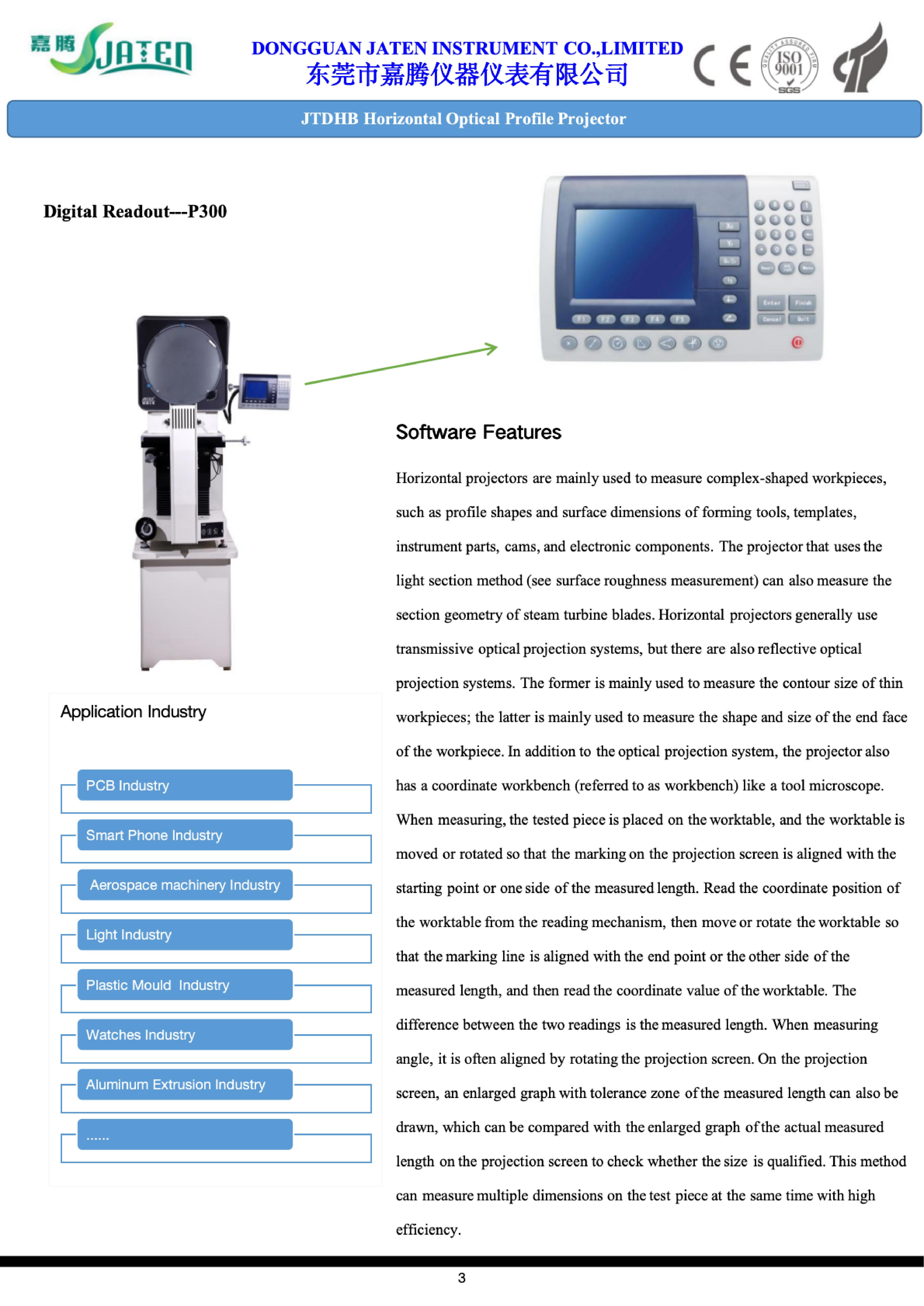

5. Geometric multifunction data processing system DRO DP300;
6. Built-in Mini-printer;
7. Available 10x,20x,50x, 100x objective rotary table and foot-switch, etc.

Packing&transportation&after sales service,:

Packaging&shipping:
1. Shipping and delivery: It depends on customer's requirements. We offer as many shipping options as possible for we have coorperated many transportion companies and shipping companies. We can transport products to our country port or even shipping to customer's port if needed.
2. Professional packaging: 1PC machine equiped with poly bag, wooden case and some shock-proof packaging are available. Make sure the machine safe.
Shipping Date: 3-5 working days after an order confirmed

Trade Detail:
Trade Terms: FOB, CIF, EXW available
Payment Terms: T/T, Western Union, Paypal, Escrow. MoneyGram.
Payment Condition: If no machine in stock-50% deposit in advance, 50% balance before delivery. And if having machine in staock, 100% payment before delivery, (0payment terms can be discussed)
Delivery Time: 3-5 working days after receive the deposit.
Packing: Wooden case. Professional export standard packaging to protect the goods.
Shipping: By sea, By air and by express delivery.
