The whole control system is safe and high reliability;
Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves;
Microcomputer for data processing and analysis, testing results can be saved automatically, testing curves can be transferred out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves;
The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curve.
Model |
IM30 |
IM60 |
IM100 |
IM150 |
IM-200 |
Measuring range |
44mm*33mm |
88mm*66m |
96mm*72mm |
142mm*96mm |
62mm*42mm |
Instrument Dimensions(mm) |
320*240*630(mm) |
400*300*785(mm) |
500*500*1000(mm) |
460*620*1440(mm) |
550*400*895(mm) |
Camera |
Daheng 2/3 〞 |
Daheng 2/3 〞 |
Vision 2/3〞 |
Vision 2/3〞 |
1〞 |
5 mega-pixel ccd |
5 mega-pixel CCD |
5 mega-pixel CCD |
5 mega-pixel CCD |
12 mega-pixel CCD |
|
Lens |
0.2X-0.088X |
0.2X-0.088X |
0.093X |
0.061X |
0.069X |
Measurement Accuracy |
0.01MM |
||||
Max working height |
15mm-26mm |
16mm |
200mm |
200mm |
134mm |

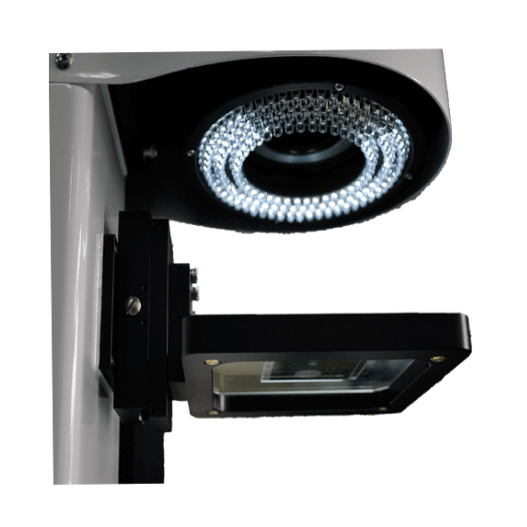

Light source |
Telecentric light source + programmable surface light source |
||||
Light source |
vision system & non-contract measurement & auto inspection & identity |
