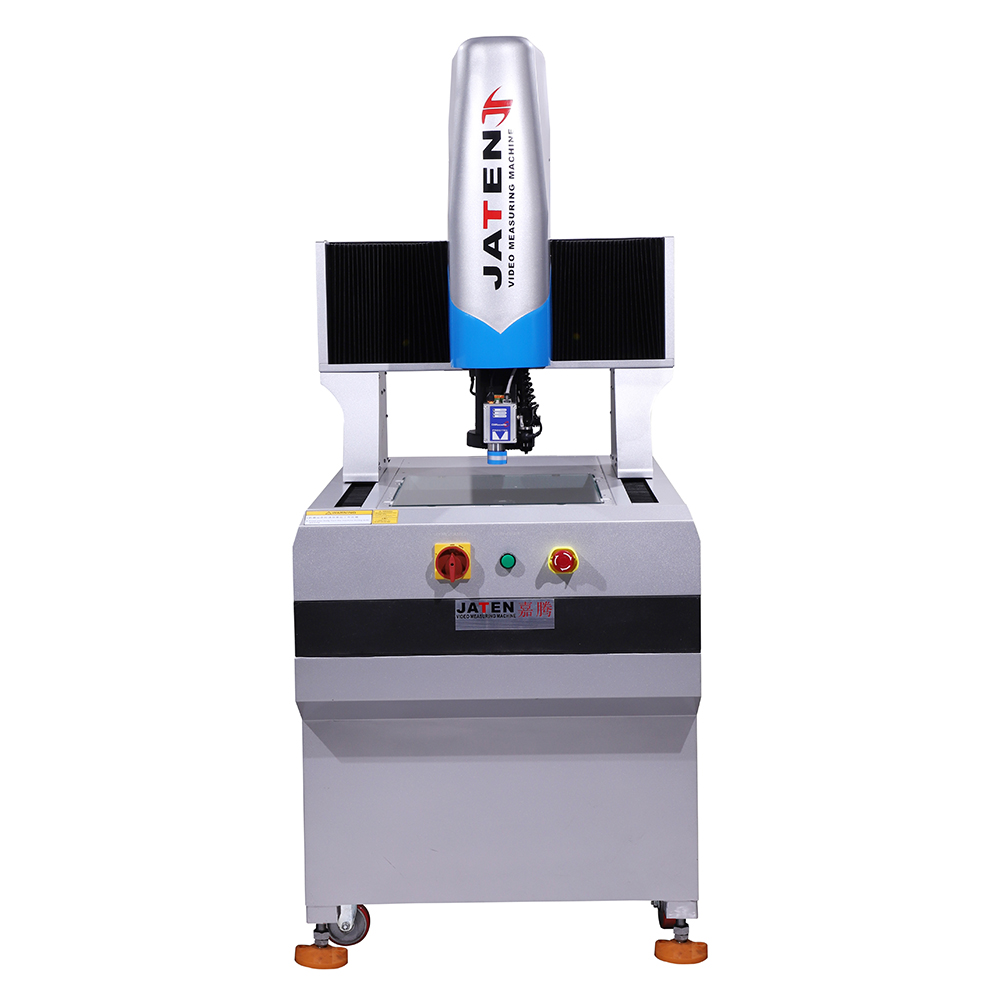

JATEN CNC Video Measuring Instrument

JATEN CNC Video Measuring Instrument

QVS-3020 quick type CNC Video Measuring System Features:

  • 1. Small size, good performance with best price, easy operation, no need put in laboratory.

  • 2. With 3D measurement function, optimize the vector points of measurement, more convenient to copper electrode factory use

  • 3. Digital-to-analog input and output, various kinds of 3D software is compatible.

  • 4. Report can be output, with CAD dynamic measurement function.

  • 5. Can off-line programming and quick measurement, more complete security graphic Settings6.Automatic measurement, three coordinates function, electrode copper optimization function module.

Main performance technical specifications:

Product Name

Fully Auto Video Measuring System

2.5D Model

QVS-3020CNC

QVS -4030CNC

QVS -5040CNC

QVS-6050CNC

3D Model(+ Probe )

QVS -3020CNC-T

QVS -4030CNC-T

QVS -5040CNC-T

QVS-6050CNC-T

X,Y-axis Travel

300x200mm

400x300mm

500x400mm

600x500mm

Z-axis Travel

200mm

X/Y/Z 3-axis Linear Scale(2.5D)


USA GSI linear scale,Resolution:0.0005mm

Accuracy

X/Y-axis:≤3+L/200(um)


Z-axis:≤4+L/200(um)

Repeatability

±2um

Illumination

Contour

Adjustable 256-grade LED Cold illumination


Surface

Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination

3D Measurement

3D Module and UK Renishaw MCP-K2 Touch Probe

Max.load Capacity

35Kg

35Kg

30Kg

30Kg

Dimension

1540x866x1750mm

1540x1066x1750mm

1740x1116x1760mm

1740x1316x1760mm

Net Weight

580Kg

620Kg

630Kg

700Kg
